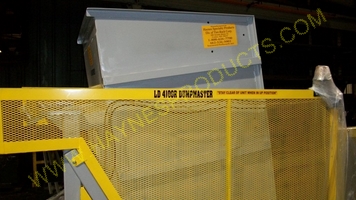

LD-4100R Dumpmaster
The LD-4100R DumpMaster is designed to dump practically all existing postal equipment, excluding the BMC/OTR container. Listed below are examples of the equipment it dumps.
This unit dumps the following types of equipment:
WEST-PAK pallet containers
WEST-PAK pallet containers
General purpose containers
pallets of mail
All-purpose containers
BMC wire containers
1046 hampers
6' cardboard boxes
1033 hampers (2 at a time)
1075 U-cart (2 at a time)
Safety

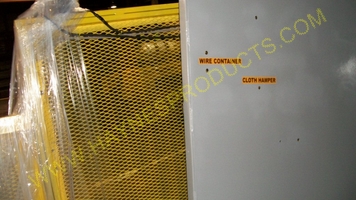

The LD-4100R has safety screens on both sides, and warning strobe lights that operates both on the up and down cycle and limit switches on both the up and down cycles.
General Info & Specs.
Pivot Bearing
McGill Pivot Bearing
Cylinder
2-3" x 20" stroke
Chute Size
Funneling to 38" (54" x 63" x 86")
Dump cycle
40 seconds
Moveability
Portable or anchored
Capacity
5000 lbs
Dump Height
34"
Dump Angle
35°
Finish
Enamel
Chute Construction
Welded steel
Safety Screen
wire mesh (2)
MFG Warranty
1 year; parts only
Electrical Systems
Enclosure
Nema 12
Primary Voltage
208V 3PH
Starter
Siemens 3TF and fuse transformer
Motor
3HP
Limit Switch
Micro switch/LS3 N.C.
Control
2 button station 2 button single contact
Sensor
2 - Sunx EQ - 34
Hydraulic Systems
Pump
3 GPM mounted to motor
Valve
Single acting dump valve
Warranty - 12 months warranty, parts only or major repairs.
