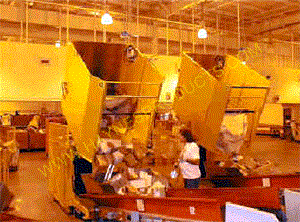

LD-6000ATL Dumpmaster
The LD-6000ATL Super Dumper is designed to dump practially all existing postal equipment. Listed below are examples of the equipment it dumps.
- WEST-PAK pallet containers
- APMCs (2 at a time)
- GPMCs (2 at a time)
- 1046 hampers
- 1033 hampers (2 at a time)
- 4' and 6' cardboard boxes
- Pallets of mail
- BMC wire containers
- BMC over the road containers
- 1075 U-cart (2 at a time)
General Info & Specs.
General Info & Specs.
ELECTRICAL SYSTEMS
- Pivot Bearing
- Lift capacity 1200 lbs
- Safety screens welded wire mesh
- Finish powder coated
- Mfg warranty 1 year parts, 2 years frame
- Enclosures all mema 12
- Primary voltage 4 wire lead, 2 hots, 1 ground, 1 neutral
- 208,230 or 250v single phase power
- Female connector l1430-c or l14-30r
- Facing the load end of the stacker
- Power drop should be at the left rear side
- Controls 7 button control box
- Sensors solid object detectors, 2 each sunx
- Motor 3 HP
- Motor ¼ hp screw drive
- Limit switches 6 each, Ge
- Pump 4 gpm/7 liter tank
- Valve single action up/down gravity
General Info & Specs.
Pivot Bearing
Cylinder
2-3" dia x 20" stroke double acting
Chute Size
Funneling to 38" (54" x 63" x 86")
Dump cycle
22 seconds
Moveability
Portable or mounted
Capacity
5000 lbs
Dump Height
34"
Ceiling Height
12'
Dump Angle
35°
Finish
Enamel econo yellow
Chute Construction
Carbon steel
Safety Screen
Wire mesh (2)
MFG Warranty
6 months; parts only
Electrical Systems
Enclosure
Nema 12
Primary Voltage
208V/30amp or 480V 3PH
Starter
Siemens 3TF and fuse transformer
Motor
5HP
Limit Switch
Micro switch/LS3 N.C.
Control
Push button station, 2 buttons, single contact
Sensor
2-Sunx EQ-34J
Hydraulic Systems
Pump
5 GPM mini pump mounted to motor
Valve
Solenoid operated
Warranty - 6 month warranty, parts only or major repairs.
