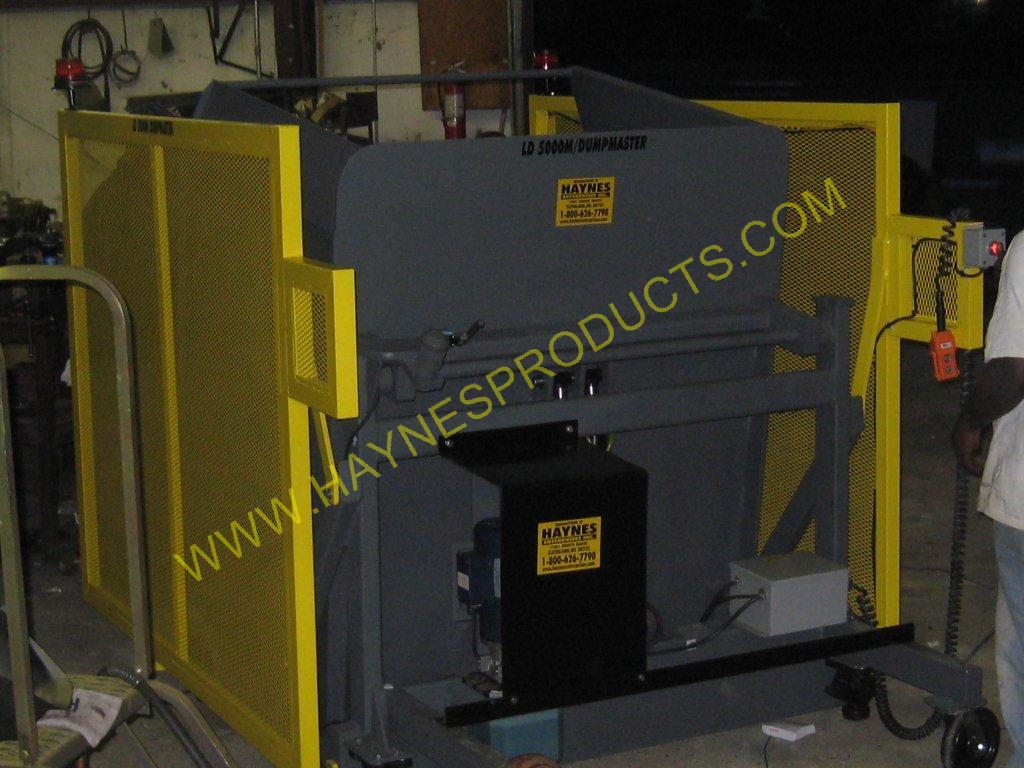

LD-5000M Dumpmaster

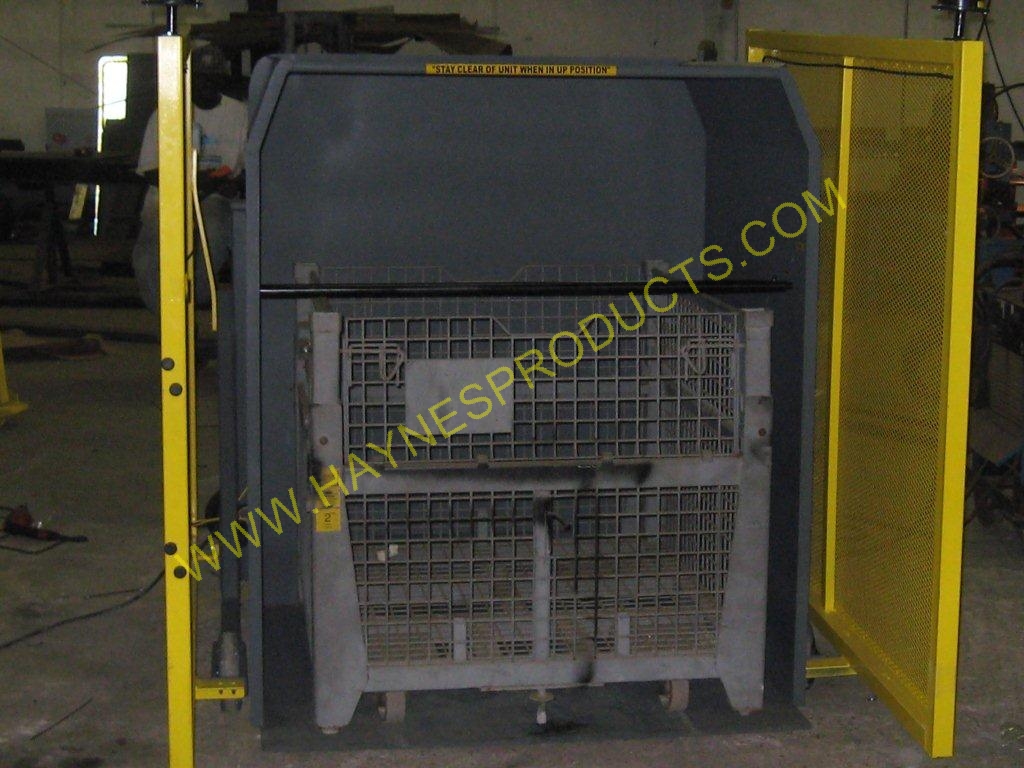

This unit dumps the following types of equipment:
1046 Hampers
BMC Wire Containers
1033 Hampers
4'-5' Cardboard Boxes
Pallets

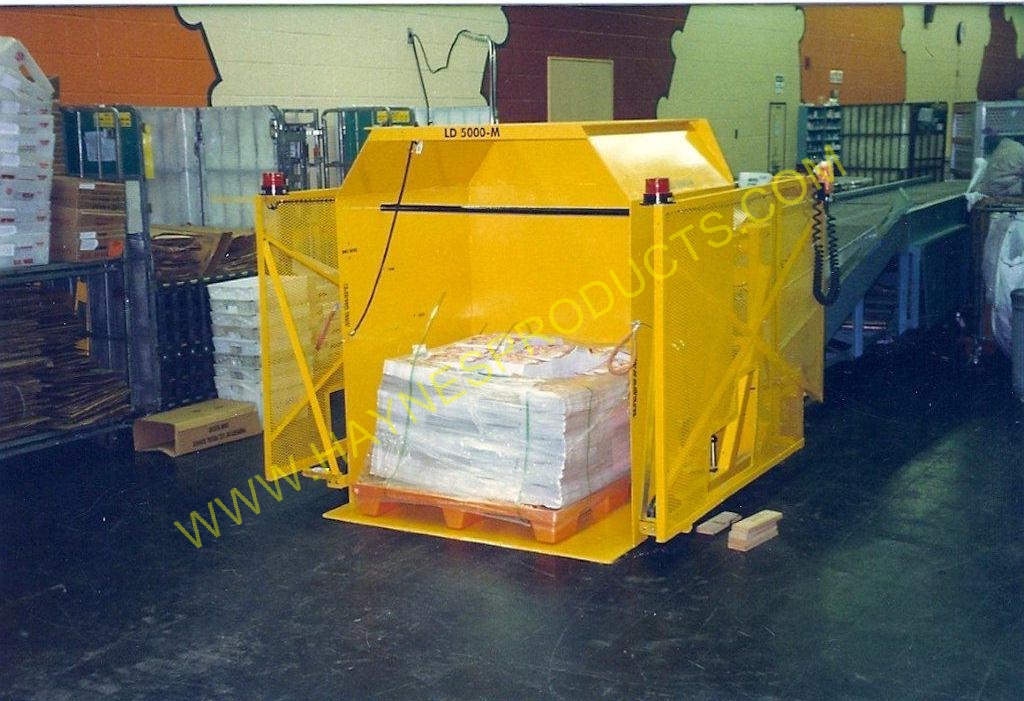

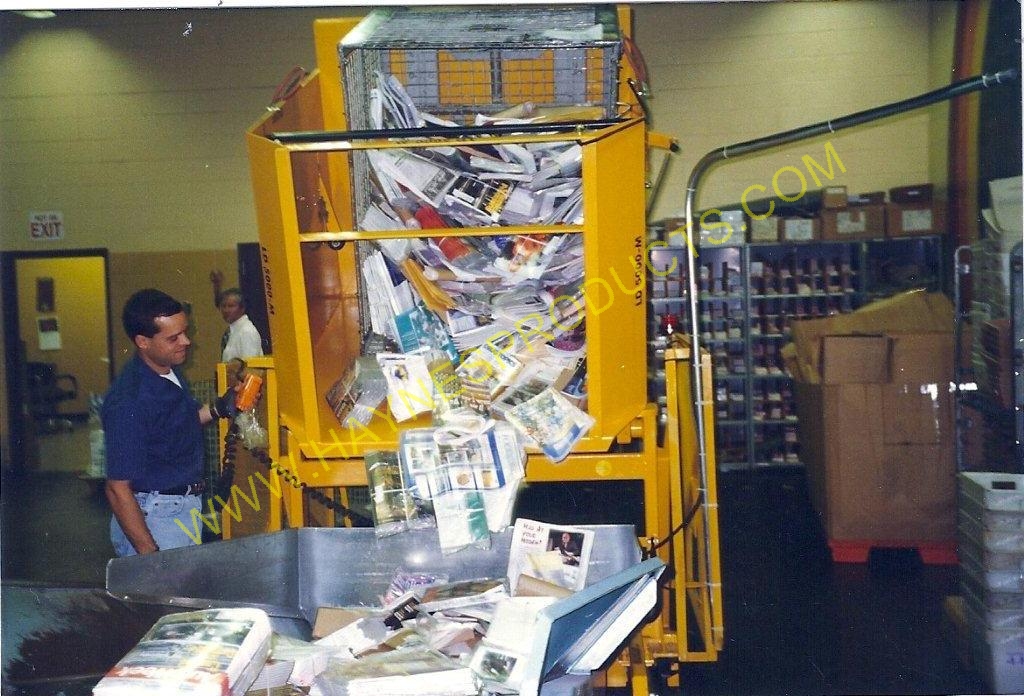

- The LD-5000M is portable and is designed to dump containers of mail onto conveyor belts

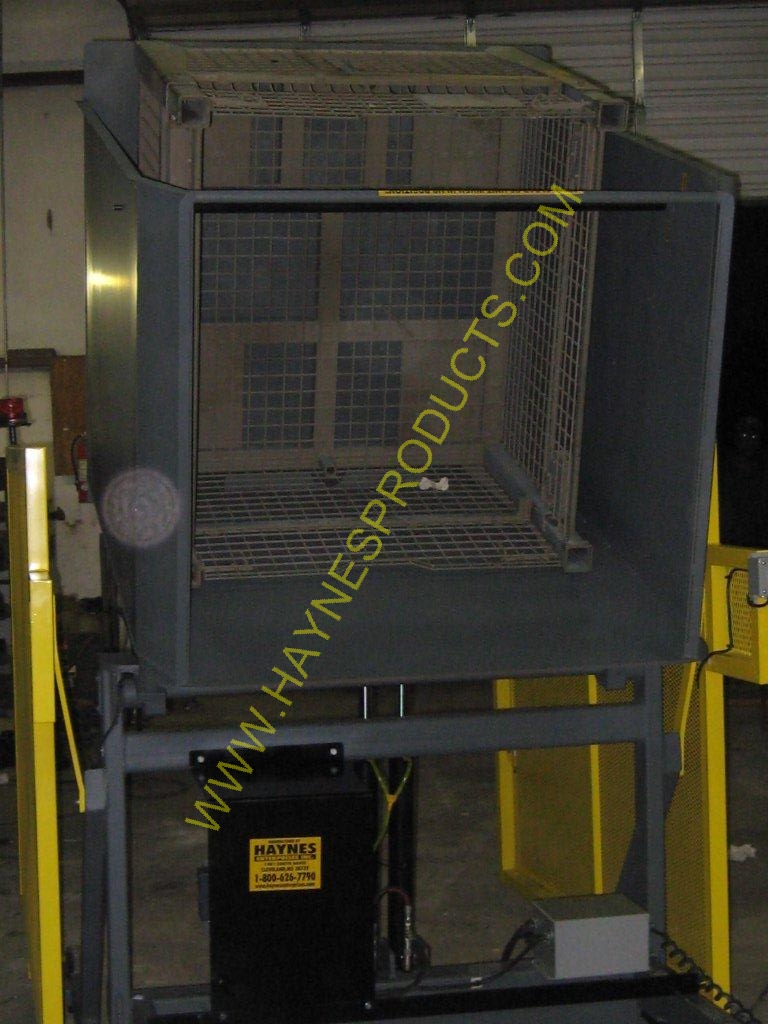

- The LD-5000M can also be used as a stand alone unit where employees may tilt container up and work mail directly from dumper into sorting operations.
- This unit is ideal for assocaite offices and large stations.
General Info & Specs.
General Info & Specs.
ELECTRICAL SYSTEMS
- Pivot Bearing
- Lift capacity 1200 lbs
- Safety screens welded wire mesh
- Finish powder coated
- Mfg warranty 1 year parts, 2 years frame
- Enclosures all mema 12
- Primary voltage 4 wire lead, 2 hots, 1 ground, 1 neutral
- 208,230 or 250v single phase power
- Female connector l1430-c or l14-30r
- Facing the load end of the stacker
- Power drop should be at the left rear side
- Controls 7 button control box
- Sensors solid object detectors, 2 each sunx
- Motor 3 HP
- Motor ΒΌ hp screw drive
- Limit switches 6 each, Ge
- Pump 4 gpm/7 liter tank
- Valve single action up/down gravity
General Info & Specs.
Cylinder
2'3" Dia x 20" Stroke Single Acting
Pivot Bearing
McGill Pivot Bearing
Dump cycle
22 Seconds
Moveability
Unit may be portable or anchored
Safety Screen
Wire Mesh (2)
MFG Warranty
1 year; parts only
Electrical Systems
Enclosure
Nema 12
Primary Voltage
208/3ph
Starter
Siemens 3TF & Fuse Transformer
Motor
3HP
Limit Switch
Micro Switch/LS3 N.C.
Sensor
Sunx - EQ - 34
Hydraulic Systems
Pump
3 GPM pump mounted to motor
Valve
Single acting dump valve
Warranty - 1 year warranty, parts only or major repairs
